The Jump Instruction

In our schematic programs, the "jump" instruction loaded the PC with a 32-bit address after a one-machine-cycle delay.

How does a 32-bit instruction specify a 32-bit address? Some of the instruction's bits must be used for the op-code. Here is the assembly language form of the jump instruction.

Here is the machine language form of the instruction:

   6              26
000010 00000000000000000000000000    -- fields of the instructuion

opcode         target                -- meaning of the fields

There is room in the instruction for 26-bits of the address. The 26-bit target address field is transformed into a 32-bit address. This is done at run-time, as the jump instruction is executed.

Instructions always start on an address that is a multiple of four (they are word-aligned). So the low order two bits of a 32-bit instruction address are always "00". Shifting the 26-bit target left two places results in a 28-bit word-aligned address (the low-order two bits become "00".)

After the shift, we need to fill in the high-order four bits of the address. These four bits come from the high-order four bits in the PC. These are concatenated to the high-order end of the 28-bit address to form a 32-bit address.

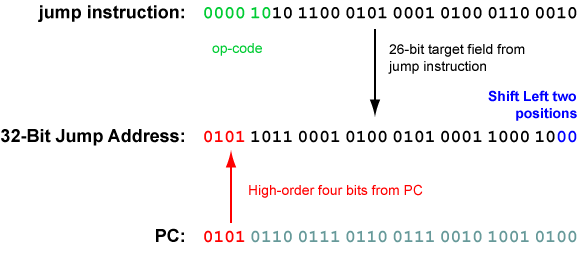

For example, here is the machine language for the instruction that jumps to location 0x5B145188. Say that the instruction is located at address 0x56767250.
