Answer:

        # create the first node
        li      $v0,9             # allocate memory
        li      $a0,8             # 8 bytes
        syscall                   # $v0 <-- address
        move    $s1,$v0           # $s1 = &(first node)

        # copy the pointer to first
        sw      $s1,first

        # initialize the node
        li      $t0,1             # store 1
        sw      $t0,0($s1)        # at displacement 0

        # create the second node
        . . . .

        .data
first:  .word  0    # address of the first node

Three Node List

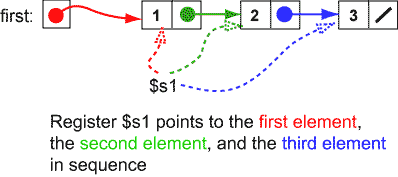

Three Node List being built

Now let us build a linked list with three nodes. This will be done with an eye to generalizing the procedure to build lists with any number of nodes. The picture shows this.

Register $s1 will be used to point to each node as it is being built.


QUESTION 7:

Why do we want to use $s1 for all nodes?

Why not use a different pointer register for each node of the linked list?
