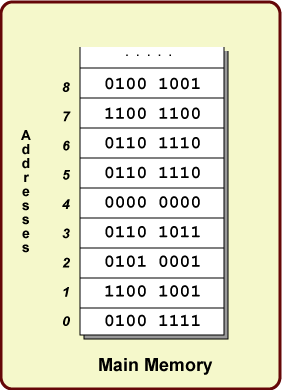

In the picture, what is the contents of:
(It is customary to show bit patterns with a space every 4 bits. The space is not actually part of the pattern.)
The processor can do two fundamental things with main memory:
For example,
if the processor needs to get the byte stored at location 5,
it can read it.
It gets 0110 1110
as the data it needs
(but location 5 in memory does not change.)
Most processors can write (and read) more than a single byte at a time. This speeds things up. But the two operations above are fundamental.
Say that later on the processor needs to save the byte 1111 1111
and
picks location 7 for this.
How will main memory be changed?
