Yes. An Ellipse
is a kind of Shape
which is a kind of Node
.
A scene graph is made of Node
s.
An ellipse fits in a box of
width 2*radiusX
and height 2*radiusY
.
The larger of radiusX
and radiusY
is the semi-major axis
and the smaller is the semi-minor axis.

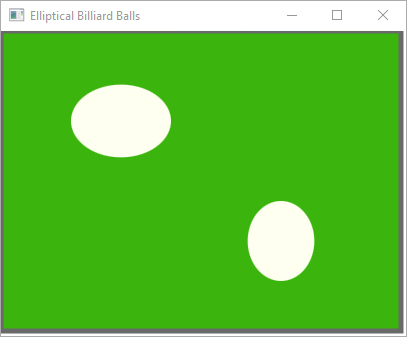

The program shows white ellipses on a green baize table.
import javafx.application.*; import javafx.stage.*; import javafx.scene.Scene; import javafx.scene.shape.*; import javafx.scene.paint.*; import javafx.scene.layout.*; public class EllipseTable extends Application { public void start( Stage primaryStage ) { double width = 400.0, height = 300.0; double centerX, centerY ; double radiusX, radiusY ; // First ellipse, width greater than height centerX = width*0.3; centerY=height*0.3; radiusX = width/8; radiusY=width/11; Ellipse billiardA = new Ellipse( centerX, centerY, radiusX, radiusY ); billiardA.setFill( Color.IVORY ); // Second ellipse, height greater than width centerX = width*0.7; centerY=height*0.7; radiusX = width/12; radiusY=width/10; Ellipse billiardB = new Ellipse( centerX, centerY, radiusX, radiusY ); billiardB.setFill( Color.IVORY ); // Green rectangle background Rectangle table = new Rectangle( 0,0, width, height ); table.setFill( new Color( 0.228, 0.71, 0.05, 1.0 ) ); // Baize green table.setStroke( Color.DIMGRAY ); table.setStrokeWidth( 5.0 ); // Pane, Scene, and Stage Pane pane = new Pane( table, billiardA, billiardB ); Scene scene = new Scene( pane ); primaryStage.setTitle("Elliptical Billiard Balls"); primaryStage.setScene( scene ); primaryStage.show(); } }
As with other Shape
s, you may set the fill color and the stroke color.
If radiusX
and radiusY
are the equal, what is drawn?
