If the user enters anything other than exactly the single character Y then the "false branch" is executed.
The if
statement
if ( answer.equals("Y") )

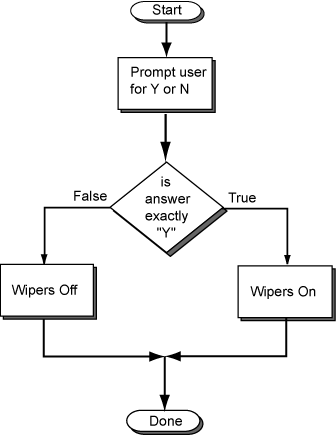

picks either the "true branch" or the "false branch" . Only one branch or the other is executed, just as in the flow chart. This part of the statement
answer.equals("Y")
evaluates to true if the string referenced by answer
contains
exactly the single character "Y" .
For anything else it evaluates to false.
This is somewhat awkward.
Dealing with user input is often awkward.
Later on you will see better ways to do this.
Here are some runs of the program:
C:\Examples>javac RainTester.java C:\Examples>java RainTester Is it raining? (Y or N): Y Wipers On C:\Examples>java RainTester Is it raining? (Y or N): N Wipers Off C:\Examples>java RainTester Is it raining? (Y or N): Yes Wipers Off C:\Examples>java RainTester Is it raining? (Y or N): Rats Wipers Off
Is the integer -12 negative or not?
